The idea
I want to test some of the pandas functionality so I try the import from HTML table for make some data analisys. So I choose a web page with data in a table (or two in this case) about manga.
import matplotlib
import pandas as pd
import matplotlib.pyplot as plt
import numpy as np
Here we have the basic import for the needed package for the project.
url = "https://www.mangacodex.com/oricon_yearly.php?title_series=&year_series=All&title_volumes=&year_volumes=All"
pd.set_option("display.precision", 2)
Some basic config (the log, the url,...) for my little script. I allwayse put at the top of the file for easy edit of them, if needed.
print("Downloading data from the page...")
tables = pd.read_html(url, thousands='.', decimal =',')
print(f"Found {len(tables)} tables on the page.")
df1 = pd.DataFrame(tables[0])
print(type(df1))
df2 = pd.DataFrame(tables[1])
print(type(df2))
Downloading data from the page...
Found 2 tables on the page.
<class 'pandas.DataFrame'>
<class 'pandas.DataFrame'>
Starting with the scrape of the page with Pandas. In this case it returnes 2 table in pandas.DataFrame
if len(tables) >= 2:
table_series = tables[1]
table_volumes = tables[0]
else:
print("Error: The page does not contain enough tables.")
raise Error
And now we have the two table as pandas Dataframe. Are there some empty data?
print("-*-" * 20)
print("Missing value stats for Series:")
print(table_series.isnull().sum())
print()
print("-*-" * 20)
print("Missing value stats for Volumes:")
print(table_volumes.isnull().sum())
-*--*--*--*--*--*--*--*--*--*--*--*--*--*--*--*--*--*--*--*-
Missing value stats for Series:
Ranking 0
Volume 0
Sales 0
Year 0
dtype: int64
-*--*--*--*--*--*--*--*--*--*--*--*--*--*--*--*--*--*--*--*-
Missing value stats for Volumes:
Ranking 0
Title 0
Sales 0
Year 0
dtype: int64
So we know the data is consistant so we need to know some generic data about this two dataset.
print("-*-")
print(table_series.head())
print()
print("-*-")
print(table_volumes.head())
-*-
Ranking Volume Sales Year
0 1 One Piece 5956540 2008
1 2 Naruto 4261054 2008
2 3 20th Century Boys 3710054 2008
3 4 Hitman Reborn! 3371618 2008
4 5 Bleach 3161825 2008
-*-
Ranking Title Sales Year
0 1 One Piece #50 1678208 2008
1 2 One Piece #51 1646978 2008
2 3 Nana #19 1645128 2008
3 4 One Piece #49 1544000 2008
4 5 Nana #20 1431335 2008
Ok now I need to reformat data from table_volumes and check the output
table_volumes[['Volume', 'Volume_Number']] = table_volumes['Title'].str.split(' #', expand=True)
print()
print("-*-")
print(table_volumes.head())
-*-
Ranking Title Sales Year Volume Volume_Number
0 1 One Piece #50 1678208 2008 One Piece 50
1 2 One Piece #51 1646978 2008 One Piece 51
2 3 Nana #19 1645128 2008 Nana 19
3 4 One Piece #49 1544000 2008 One Piece 49
4 5 Nana #20 1431335 2008 Nana 20
Start the analysis
We start with all the selling data for year.

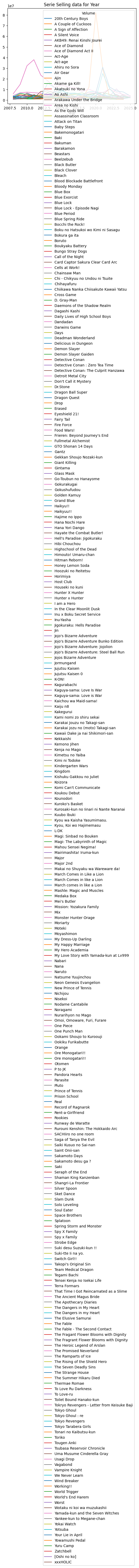

df_pivot = table_series.pivot(index='Year', columns='Volume', values='Sales')
ax = df_pivot.plot()
plt.title('Serie Selling data for Year')
plt.show()
Ok we need to clean some of this caos of a plot.
- Remove the HUGE legend
- Having a plot type which is readable and usefull (an area plot?)
- Fix the X increment ( I want full year, not halfs)

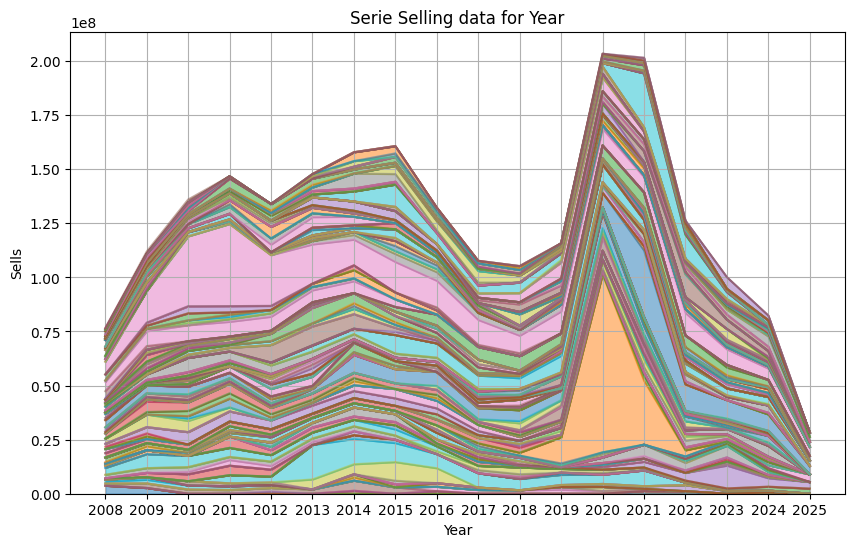

df_pivot = table_series.pivot(index='Year', columns='Volume', values='Sales')
# Remove the legend
ax = df_pivot.plot(kind='area', alpha=0.5, figsize=(10, 6), legend=False)
# Fix the year thinks
years = df_pivot.index.unique()
plt.xticks(np.arange(min(years), max(years) + 1, 1))
# Add some labels
plt.title('Serie Selling data for Year')
plt.xlabel('Year')
plt.ylabel('Sells')
plt.grid(True)
plt.show()

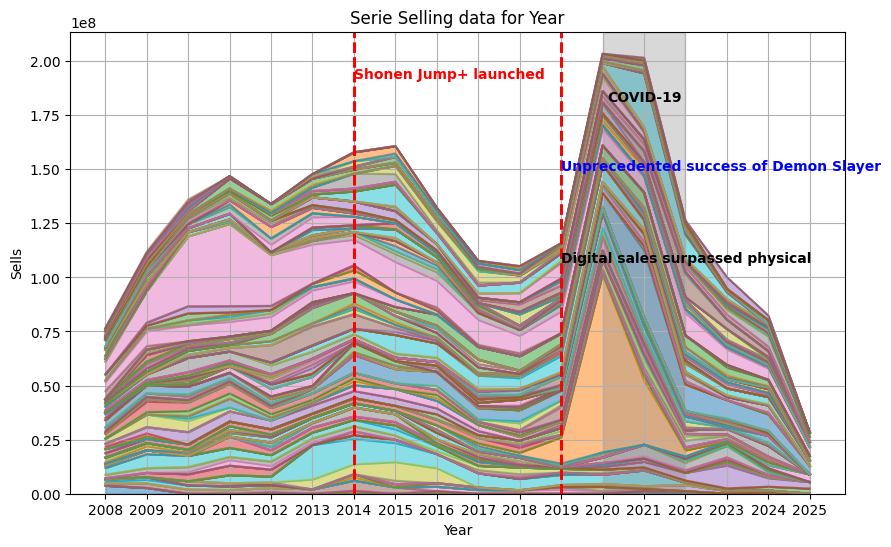

Ok now can we put some time reference for Japan?
df_pivot = table_series.pivot(index='Year', columns='Volume', values='Sales')
ax = df_pivot.plot(kind='area', alpha=0.5, figsize=(10, 6), legend=False)
years = df_pivot.index.unique()
plt.xticks(np.arange(min(years), max(years) + 1, 1))
plt.title('Serie Selling data for Year')
plt.xlabel('Year')
plt.ylabel('Sells')
plt.axvline(x=2014, color='red', linestyle='--', linewidth=2)
# Marker for Shonen Jump+
plt.axvline(x=2014, color='red', linestyle='--', linewidth=2)
plt.text(2014, ax.get_ylim()[1]*0.9, 'Shonen Jump+ launched', color='red', fontweight='bold')
# Marker for Demon Slayer: Kimetsu no Yaiba
plt.axvline(x=2019, color='red', linestyle='--', linewidth=2)
plt.text(2019, ax.get_ylim()[1]*0.7, 'Unprecedented success of Demon Slayer', color='blue', fontweight='bold')
# Marker for digital manga sales have surpassed physical manga source: https://hon.jp/news/1.0/0/30684
plt.axvline(x=2019, color='red', linestyle='--', linewidth=2)
plt.text(2019, ax.get_ylim()[1]*0.5, 'Digital sales surpassed physical', color='black', fontweight='bold')
# Gray area for the COVID-19 years with label
plt.axvspan(2020, 2022, color='gray', alpha=0.3)
plt.text(2021, ax.get_ylim()[1]*0.85, 'COVID-19', color='black', fontweight='bold', ha='center')
plt.grid(True)
plt.show()
Ok now we select some of the manga for having a better view.
